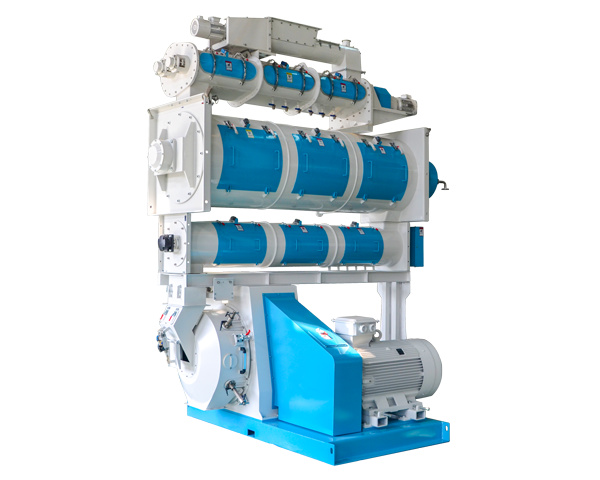

SZLH-X Shrimp Pellet Mill

Applicable to the processing of various compound feeds, specialized for the production of aquatic feeds such as shrimp feed, fish feed, and crab feed.
Device Description

Applicable to the processing of various compound feeds, specialized for the production of aquatic feeds such as shrimp feed, fish feed, and crab feed;

Flexible combination with ripening kettle, conditioner, retentioner, and other equipment, high output, stable product quality, etc;

Single motor, high-efficiency pulley transmission, effectively overcomes the die slipping to ensure the pellet mill works more smoothly;

Bearings, oil sealing, and other imported brands, long service life;

Large inertia pulley drive, effectively overcome the phenomenon of slipping

Optimized feeding scraper and die cover make the material enter the pressing chamber more stable and smooth.

Fully automatic lubrication system reduces the intensity of the operator, eliminates oil cut-off due to human factors;

High-strength forged hoop to ensure reliable connection between die and drive disk ensure smooth operation;

Dies and rollers made of special materials and special processing have long service life.

Device Parameters
ModelPower (kW)Shrimp feed
Hole diameter (mm)
Shrimp feed
Capacity (t/h)
Fish and crab feed
Hole diameter.( mm)
Fish and crab feed
Capacity (t/h)
Ring mould width (mm)
SZLH430X110φ1.0-φ1.61-2φ2.0-φ4.02-6140
SZLH530X132/160φ1.0-φ1.62-5φ2.0-φ4.03-12172
SZLH650X185φ1.0-φ1.63-8φ2.0-φ4.05-16172
Equipment Details
  • SZLH-X Shrimp Pellet Mill

    Gear and gear shaft adopt carburizing and hardening, hard tooth surface grinding processing technology, drive balance, low noise, long service life.

  • SZLH-X Shrimp Pellet Mill

    The door cover and chute are made of stainless steel, with strong anticorrosion ability.

    Chute iron removal device, effectively remove iron impurities, protect the safety of gear and bearing.

  • SZLH-X Shrimp Pellet Mill

    Safety pin safety switch, effective overload protection.

  • SZLH-X Shrimp Pellet Mill

    Pressure roller adjusting mechanism, can adjust the pressure roller to the best position;

    The roller adopts high wear resistance material, long service life.
