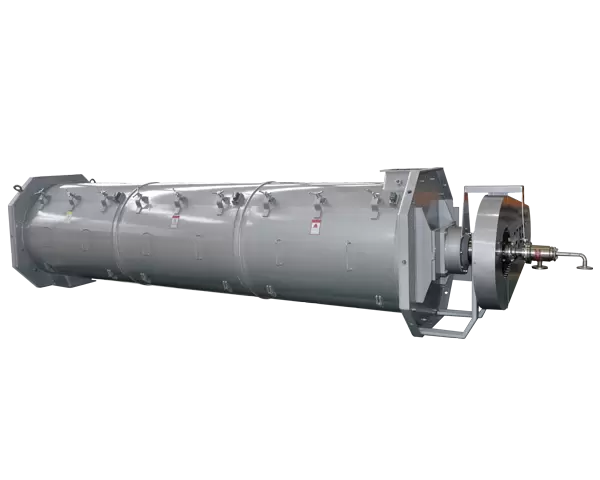

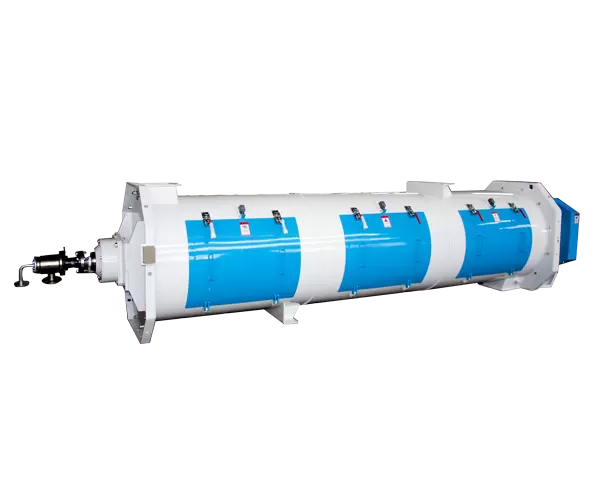

SSHF Ripening Kettle

Fast patented product (patent number: ZL 2016 1 0881567.3), mainly used for cooking, sterilization before pelleting and extruding in feed production, the equipment has strong function for the quality, conditioning, evaporation and drying.
Device Description

Fast patented product (patent number: ZL 2016 1 0881567.3), mainly used for cooking, sterilization before pelleting and extruding in feed production, the equipment has strong function for the quality, conditioning, evaporation and drying;

By heating the external jacket and the internal shaft steam at the same time, the material can be quickly heated, conditioned, cooked, and evaporated, and the temperature can reach 95-105℃.

Increase the volume design, the ripening time can reach 3-15 minutes, and the ripening degree can reach more than 50%.

Adopt thickened and enlarged paddles design to ensure material first in first out, no overnight mildew and cross contamination, long service life;

Special homogenizing and dispersing mechanism, stable and uniform discharge.

Variable frequency speed motor, flexible adjustment of material maturation.

Device Parameters
ModelVolume(L)Power(kw)Capacity(t/h)
SSHF150015005.53-12
SSHF200020007.54-15
SSHF250025007.55-20
Equipment Details

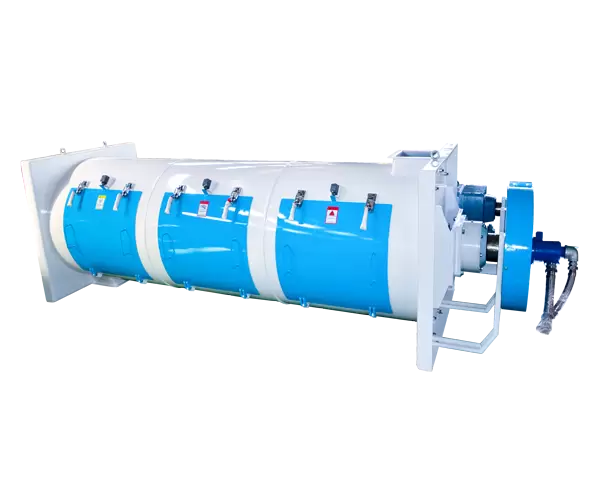

  • SSHF Ripening Kettle

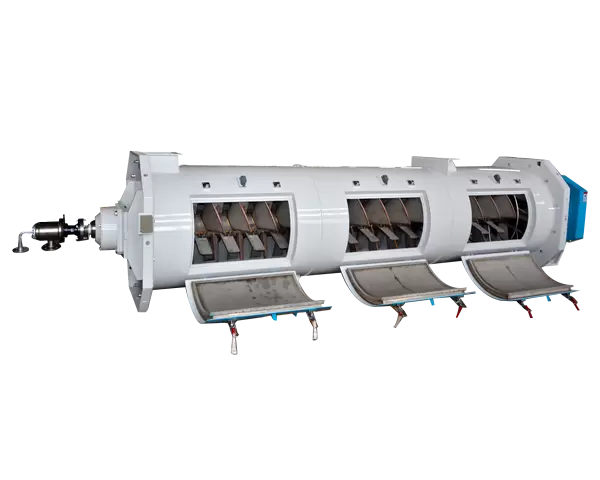

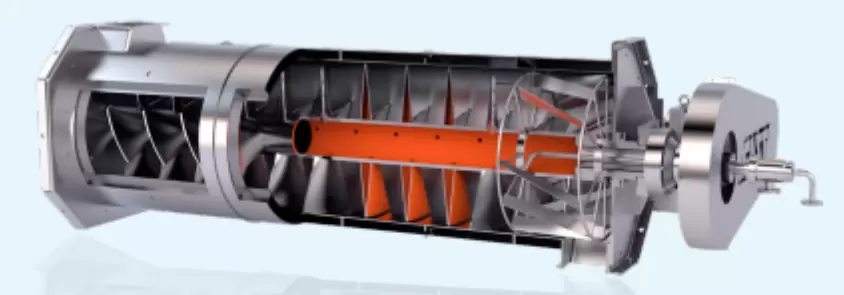

    Steam flows from the rotary joint through the hollow shaft, while condensate water is discharged via the built-in siphon. The cylinder jacket is insulated for rapid heating, enabling cooking, curing, sterilization, and more functions.

    The blade is hollow from end to end, less residual. The residual heat can evaporate the residual water after stopping, and the dry material can be discharged from the blade, shaft, and cylinder wall, eliminating overnight mildew.

    Variable frequency control to meet the requirements of various feed formulas and quality.

  • SSHF Ripening Kettle

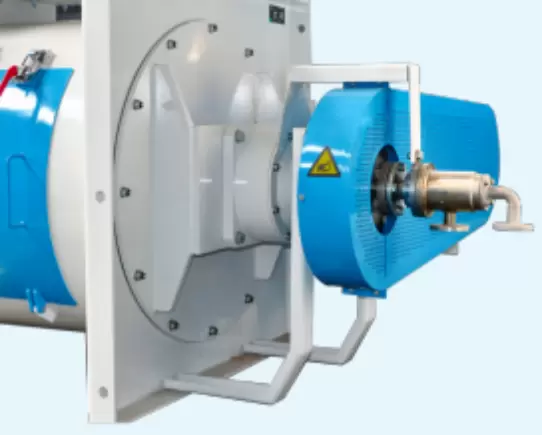

    Special rotary joint can realize two functions of steam adding and condensate water discharge.

  • SSHF Ripening Kettle

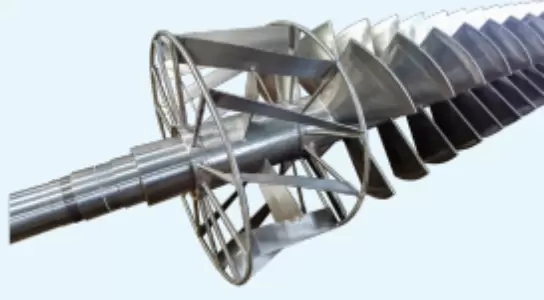

    "Louver type" homogenizing device ensures stable pellet mill electric current

  • SSHF Ripening Kettle

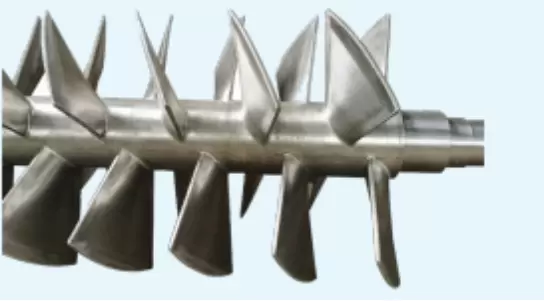

    Hollow blade shaft, large heating area.
